The BeAll's
DVD-R media feature a reliable and cost effective format for data
and video
recording, distribution, and archiving with a life
expectancy over one hundred years.
Surface Type
- Branded
- Ink-Jet Printable
Packaging Types & Units
- 1pc. in Jewel Case
- 5pc. in Box
- 50, 100pc. in Spindle
* Compatible on DVD-Video players & DVD-Rom drives
* Commercial and Home DVD-Video production
* Large sized data archive storageDVD-R General for
Video-Compatablity
|

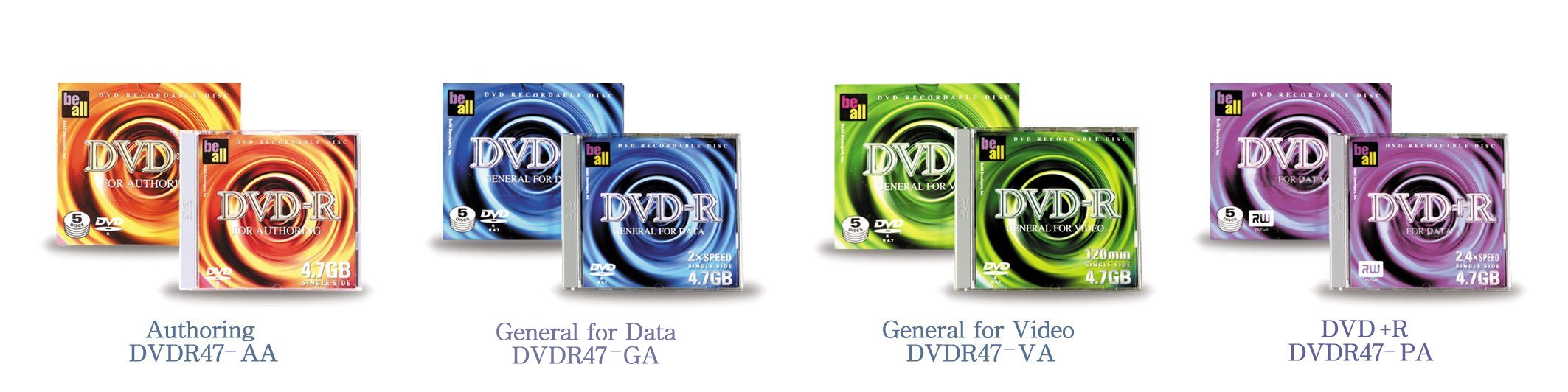

Model
|
DVDR47-GA
|
DVDR47-VA
|
|
|
User data capacity
|
4.7 Gbyte/side
|
||
|
Application
|
General for Data
|
General for Video
|
|
|
Wavelength of laser diode
|
635/650nm
|
||
|
Playback
|
650nm
|
||
|
Track Pitch
|
0.74+0.01um
|
||
|
Mechanical Parameter
|
Outer dia
|
120.0+0.3mm
|
|
|
Inner dia
|
15.0+0.15/-0.00mm
|
||
|
Thickness
|
1.20+0.30/-0.06mm
|
||
|
Scanning velocity
|
3.49+0.02m/s
|
||
|
Recording Power
|
8~12mW
|
||
|
Refrectivity
|
>45%
|
||
|
Jitter
|
<8.0%
|
||
|
Modulated amplitude(114/114H)
|
>0.60
|
||
|
Pl Error rate
|
< 280ea/8 ECC
|
||
|
Brand
|
Type
|
Interface
|
Model
|
|
Apple
|
R/RW
|
EIDE
|
Super Drive (G4 series)
|
|
Pioneer
|
R/RW
|
EIDE
|
DVR-A03,103
|
|
Pioneer
|
R/RW
|
SCSI
|
DVR-303
|
|
Pioneer
|
R/RW
|
Consumer
|
DVR-2000
|
|
Pioneer
|
R/RW
|
Consumer
|
DVR-7000
|
|
Sony
|
R/RW
|
Consumer
|
RDR-A1
|
|
Sony
|
R/RW
|
IEE1394
|
PCVA-DRW1
|
|
Matsushita
|
R/RAM
|
SCSI
|
LF-D321
|
|
Lositec
|
R/RW
|
IEE1394
|
LDR-214F
|
|
TransGear
|
R/RW
|
SCSI
|
DVD-R 100-P
|
|
Pivela
|
R/RW
|
IEE1394/EIDE
|
DIX-DVR/FW
|
|
Item
|
Package
|
q'ty per package(pcs)
|
q'ty per export carton(pcs)
|
q'ty per pallet(pcs)
|
|
DVD-R 4.7GB
|
Jewel
|
5/gift box
|
20 gift boxes/carton
|
36 cartons /pallet
|
|
General Video
|
580x310x153mm
|
1200x950x960mm
|
||
|
(weight)
|
(weight)
|
NW/506g, GW/535g
|
NW/10.7Kgs, GW/11.5Kgs
|
NW/385Kgs, GW/400Kgs
|
|
DVD-R 4.7GB
|
bulk
|
100pcs shrink wrapped
|
800pcs /carton
|
48 cartons /pallet
|
|
General Video
|
510x260x180mm
|
1100x1100x1200mm
|
||
|
(weight)
|
(weight)
|
NW/2.1Kgs
|
NW/16.8Kgs, GW/17Kgs
|
NW/816Kgs, GW/830Kgs
|
|
GW/2.1Kgs
|
